KOYAMA Hydraulic Oils are formulated using the best quality base stocks available. It imparts excellent resistance to oxidation demanded by the sophisticated Hydraulic systems. KOYAMA Hydraulic Oils provide outstanding high temperature stability, longer drain intervals and clean operation of equipment. Also suitable for a wide temperature range and applications. Serves as multi-service lubricant in Hydraulics, Circulating systems and Air Compressors.

PERFORMANCE LEVEL

• ISO 11158 HM & HV, DIN 51524-2 (HM); DIN 51524 -3 (HV)
• Cincinnati-Milacron P68, P69, P70 (HM & HV)
• Denison HF- 0, HF – 1, HF – 2 (HM & HV; GM LS – 2
• Eaton E-FDGN-TB002-E; M-2950-S; ASTM D 6158 (HM & HV)
• SAE MS 1004 (HM & HV); Bosch Rexroth RDE 90235
• AIST 126, 127; SEB 181222; ANSI/AGMA 9005 – E02 – RO
• JCMAS P041 HK Hydraulic specification

BENEFITS & ADVANTAGES

• Reduced maintenance costs & Consumption
• Good water separation characteristics
• Protects Gears & Pumps in circulating system
• High Anti wear, Thermal & oxidation stability

SPECIFICATION & TECHNICAL PARAMETER

*Technical data provided here is for reference only. Minor variations in product typical test data are to be expected. **All the information contained in this document is considered to be accurate as of the date of printing. No warranty or representation, expressed or implied, is made as to the accuracy of the data and information in this publication. It is the user’s obligations to evaluate and use the products safely and to comply with all applicable laws and regulations. For more information, please contact your sales representative.

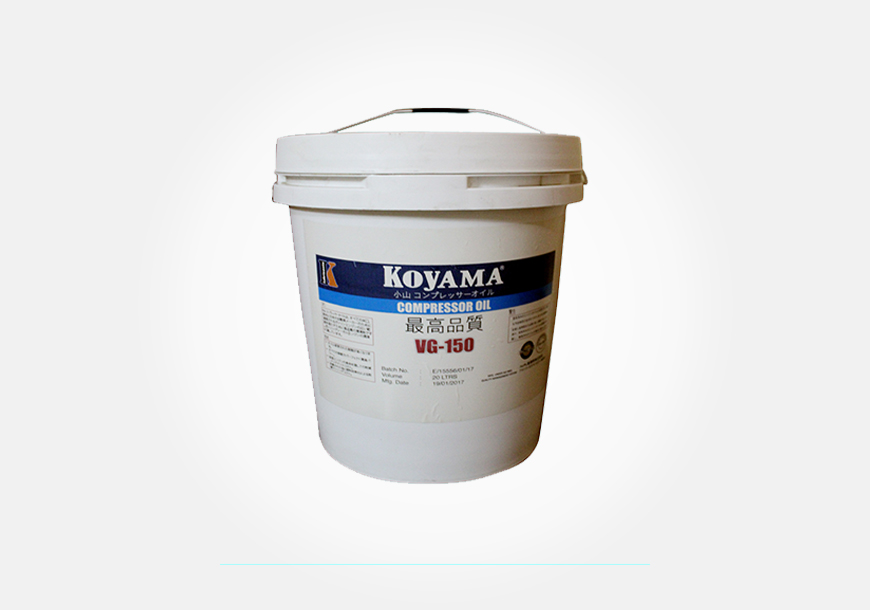

KOYAMA Air Compressor Oil is blended from premium paraffinic base oils of high viscosity index and modern additive technology that give these fluids a unique control over oxidation, rust, corrosion and wear. The ash less additive system enables the use of thee oils in both reciprocating as well as rotary compressors. KOYAMA air series strictly conform to the ISO viscosity grading system.

APPLICATION

• Suitable for oil-flooded rotary compressors
• Provides excellent lubrication in sliding vane compressors and in reciprocating compressors operating at high ambient temperatures
• Can also be used in crankcase and cylinders of reciprocating compressors

PERFORMANCE LEVEL

• Industry Standards : ISO 6743-3 DAA (Normal Duty
• ISO 6743-3A DAH
• ISO 6743-3A DAJ
• DIN 51506 VDL/DP 6521-L-DAB (Medium Duty)

BENEFITS AND ADVANTAGES

• Reduced compressor deposits
• Reduced wear – protects against friction, corrosion and rust
• Superior oxidation stability
• Reduces crankcase oil consumption

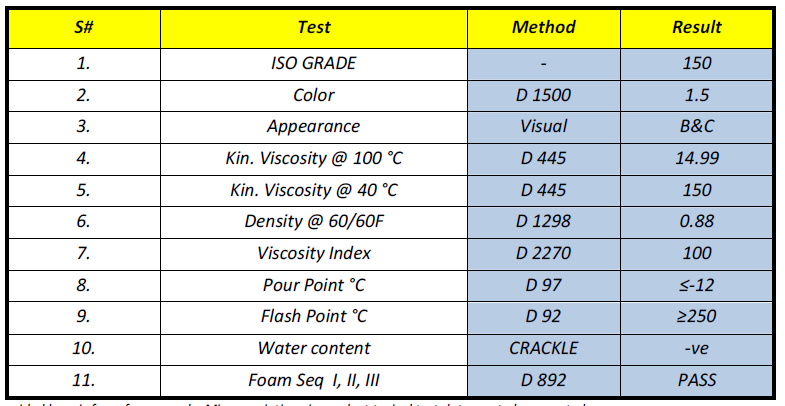

SPECIFICATION & TECHNICAL PARAMETER

*Technical data provided here is for reference only. Minor variations in product typical test data are to be expected. **All the information contained in this document is considered to be accurate as of the date of printing. No warranty or representation, expressed or implied, is made as to the accuracy of the data and information in this publication. It is the user’s obligations to evaluate and use the products safely and to comply with all applicable laws and regulations. For more information, please contact your sales representative.
